EcoPulse PWM

The EcoPulse™ is a pulse width modulation (PWM) solar charge controller within Morningstar’s Essential Series™ of products which provides essential off-grid battery regulation functions. This controller is easy to use, and designed for residential and leisure consumer applications. Metered and non-metered versions of this product are available at 10, 20, and 30 amp charge ratings for 12 and 24 volt battery systems. The EcoPulse is not sold in the USA or Canada.

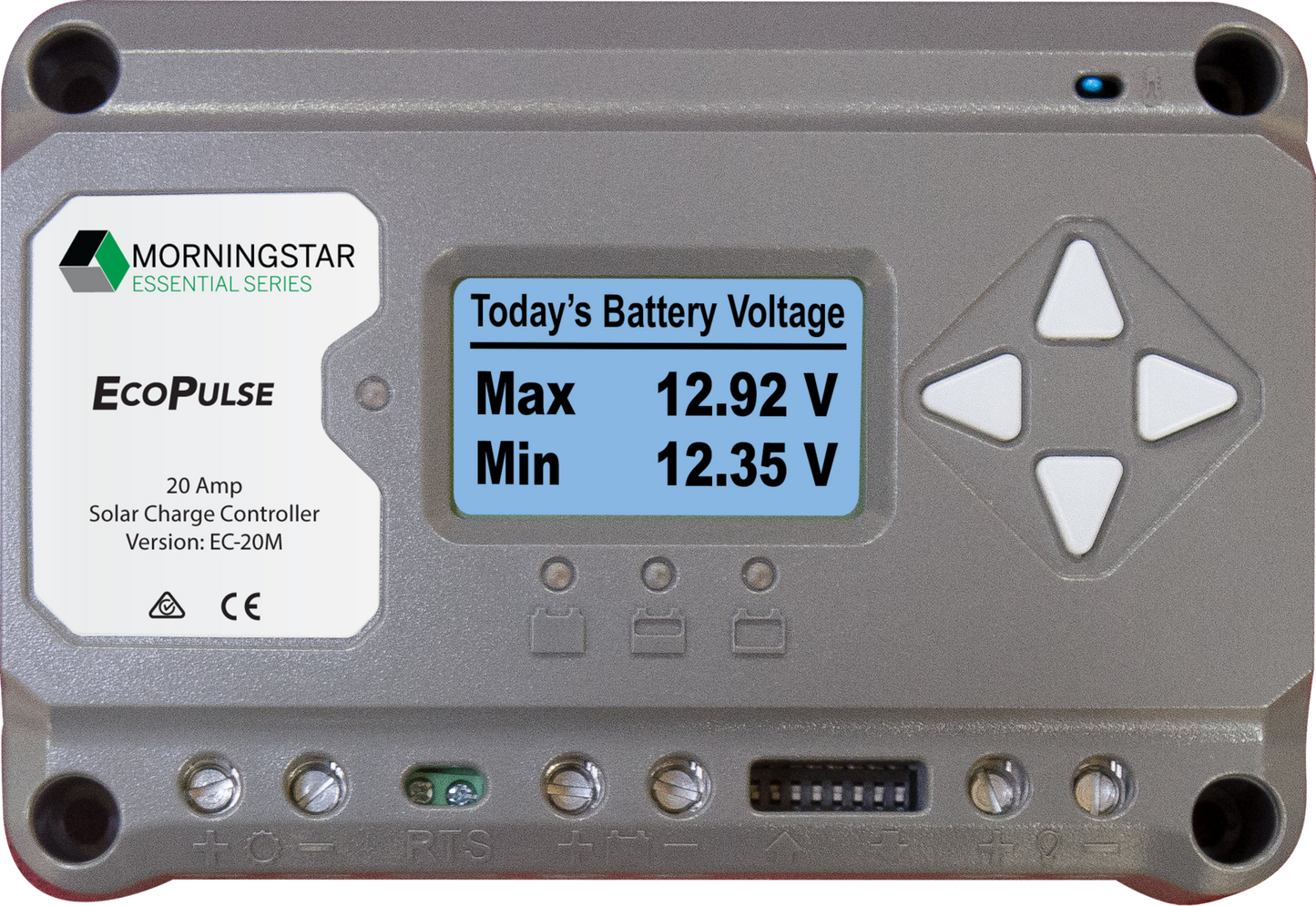

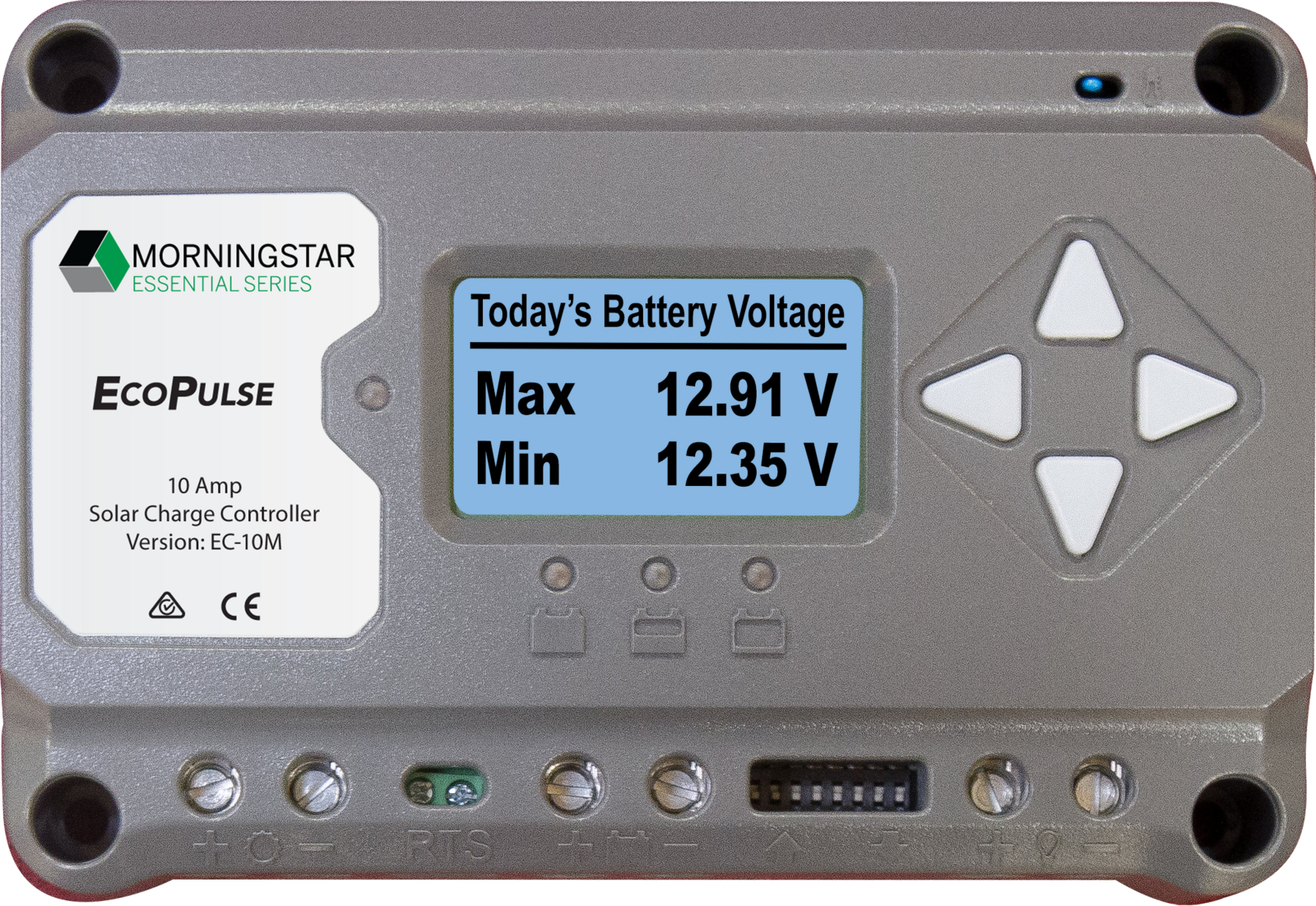

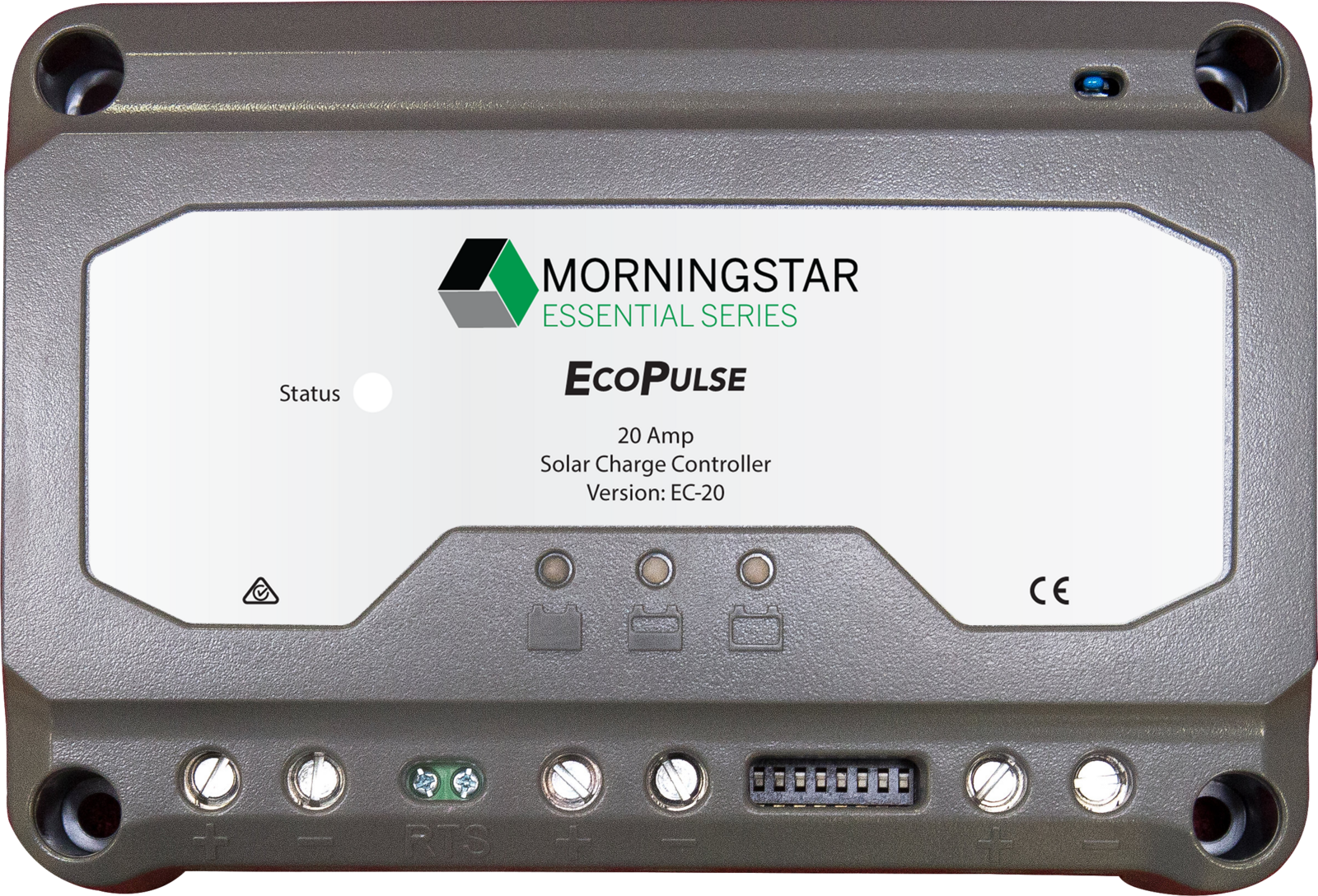

Models: EC-10, EC-20, EC-30, EC-10M, EC-20M, EC-30M

Key Features and Benefits

• High Reliability
  Conformally coated circuit board and corrosion resistant terminals.
• Robust Thermal Design
  Extruded aluminum heatsink dissipates heat quickly without using cooling fans.
• Durable Casing
  High strength polycarbonate case.
• LED Fault Indications
  Alert when short circuit, over current, high voltage, and other error conditions take place.
• Automatic Solar Based Lighting Control
  Field adjustable dusk ‘til dawn setting.
• Adjustable Charge Settings
  Seven presets and a custom setting can be set via DIP Switches or by the meter display buttons.
• Adjustable Load Control
  Load control can be adjusted via meter display.
• Optional Meter
  Multi-lingual interface with scroll buttons to adjust the settings and display metrics.

Downloads:

• Datasheet
• Operation Manual
• Quick Start Guide
