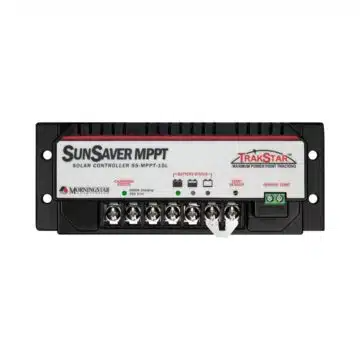

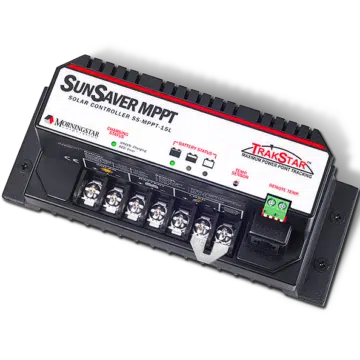

SunSaver MPPT

The SunSaver MPPT™ with TrakStar technology is the perfect charging solution for smaller off-grid solar systems up to 520Wp.  It’s industrial-grade design has been proven in challenging applications and environments including Class 1 Division 2, Groups A-D Hazardous Locations.  SunSaver MPPT can charge Lead-Acid, Lithium, NiCd, and other battery chemistries. Custom settings programming is required for Lithium, NiCd, and other battery chemistries.

“…an amazing product…well built, and well designed”

Models: SS-MPPT-15L

Key Features and Benefits

• Maximum power point tracking (MPPT) optimally matches the solar array to the battery—no wasted PV electricity.
• Use of high voltage modules – In addition to 12V crystalline modules,
  enables use of high voltage modules for off-grid battery charging.
• Converts 36V or 24V arrays for use with either a 24V or 12V battery.
• Automatic Lighting Control – four programmable timer sequences for PV lighting applications using MSView.
• Extensive electronic protections include short-circuit, over-current and reverse polarity to ensure the controller will not be damaged by wiring mistakes or overloads.

Downloads:

• Datasheet
• Operation Manual
• Quick Start Guide
